Oil / Fuel Delivery Hose - 10 BAR
Oil / Fuel Delivery Hose - 10 BAR

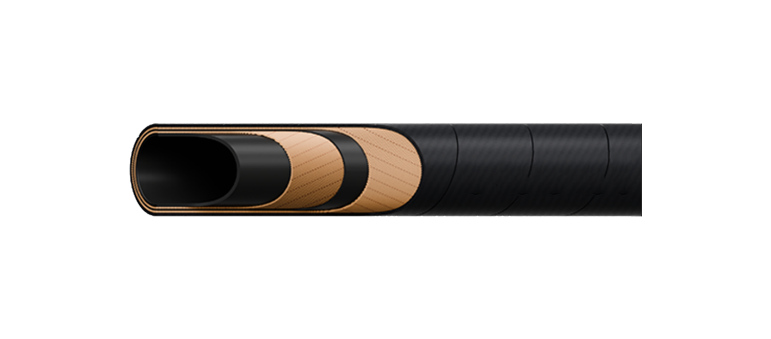

Construction
- Inner tube : Black colour, Synthetic rubber resistant to oil
- Reinforcement : Plies of synthetic textile cords with two cross anti static copper wires
- Cover : Black colour, Synthetic rubber resistant to oil, ozone and abrasion
- Application : Mandrel built heavy duty oil discharge hose for handling grades of gasoline or petroleum oils of aromatic content upto 50% in dispensing station etc, during winter/summer seasons
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH613-12 | -12 | 3/4 | 19.0 | 1.06 | 27.0 | 150 | 10 | 435 | 30 | 0.52 |
| PH613-16 | -16 | 1 | 25.0 | 1.38 | 35.0 | 150 | 10 | 435 | 30 | 0.65 |
| PH613-20 | -20 | 1.1/4 | 32.0 | 1.65 | 42.0 | 150 | 10 | 435 | 30 | 0.80 |
| PH613-24 | -24 | 1.1/2 | 38.0 | 1.89 | 48.0 | 150 | 10 | 435 | 30 | 0.94 |
| PH613-32 | -32 | 2 | 51.0 | 2.44 | 62.0 | 150 | 10 | 435 | 30 | 1.26 |
| PH613-40 | -40 | 2.1/2 | 63.0 | 2.95 | 75.0 | 150 | 10 | 435 | 30 | 1.90 |
| PH613-48 | -48 | 3 | 76.0 | 3.46 | 88.0 | 150 | 10 | 435 | 30 | 2.20 |
| PH613-56 | -56 | 3.1/2 | 89.0 | 4.09 | 104.0 | 150 | 10 | 435 | 30 | 2.60 |
| PH613-64 | -64 | 4 | 102.0 | 4.57 | 116.0 | 150 | 10 | 435 | 30 | 2.85 |
| PH613-80 | -80 | 5 | 127.0 | 5.59 | 142.0 | 150 | 10 | 435 | 30 | 4.20 |
| PH613-96 | -96 | 6 | 152.0 | 6.54 | 166.0 | 150 | 10 | 435 | 30 | 5.30 |
- Temperature Range : Continuous: -20°C to +80°C
