EPDM Chemical Suction & Discharge Hose - 17 BAR
EPDM Chemical Suction & Discharge Hose - 17 BAR

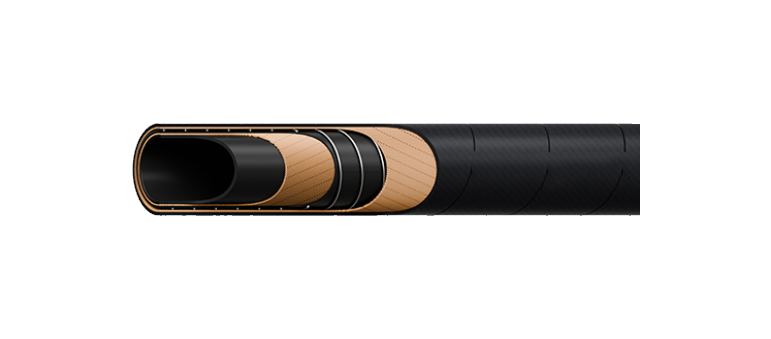

Construction
- Inner tube : Black colour, EPDM synthetic rubber resistant to wide range of industrial chemicals
- Reinforcement : Plies of synthetic textile cords with steel helix and two cross anti static copper wires
- Cover : Black colour, Synthetic rubber resistant to ozone, weather and abrasion
- Application : For conveying wide range of light chemicals
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH646-08 | -08 | 1/2 | 12.7 | 0.97 | 24.7 | 250 | 17 | 750 | 51 | 0.56 |
| PH646-12 | -12 | 3/4 | 19.0 | 1.22 | 31.0 | 250 | 17 | 750 | 51 | 0.68 |
| PH646-16 | -16 | 1 | 25.0 | 1.46 | 37.0 | 250 | 17 | 750 | 51 | 0.80 |
| PH646-20 | -20 | 1.1/4 | 32.0 | 1.73 | 44.0 | 250 | 17 | 750 | 51 | 0.99 |
| PH646-24 | -24 | 1.1/2 | 38.0 | 2.05 | 52.0 | 250 | 17 | 750 | 51 | 1.50 |
| PH646-32 | -32 | 2 | 51.0 | 2.64 | 67.0 | 250 | 17 | 750 | 51 | 2.04 |
| PH646-40 | -40 | 2.1/2 | 64.0 | 3.15 | 80.0 | 250 | 17 | 750 | 51 | 2.70 |
| PH646-48 | -48 | 3 | 76.0 | 3.62 | 92.0 | 250 | 17 | 750 | 51 | 3.12 |
| PH646-64 | -64 | 4 | 102.0 | 4.65 | 118.0 | 250 | 17 | 750 | 51 | 4.60 |
- Temperature Range : Continuous: -30°C to +120°C
